WALL MOUNT · 1 PAGE

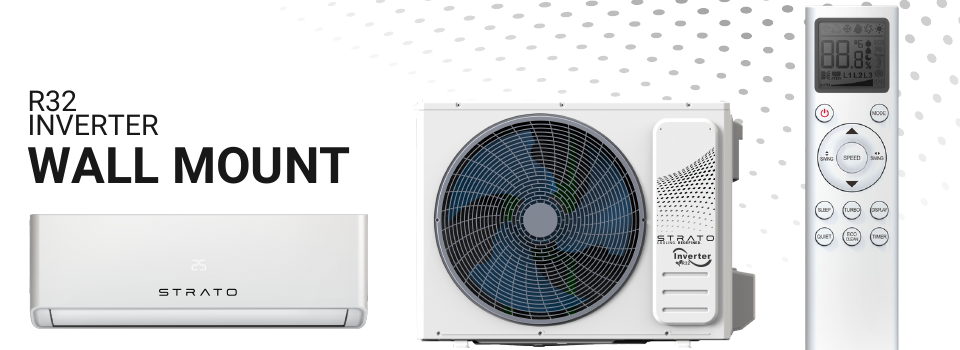

Wall Mount Technical Cut Sheet
9K through 36K BTU performance, dimensions, control features and Purple Fin technical reference.
FOR CONSULTANTS · CONTRACTORS · CUSTOMERSTechnical.
Technical.
Without the hunt.
Performance, dimensions, piping, electrical information and Purple Fin reference data are all in one place. View online or take the cut sheet with you.
DOCUMENTSCut sheets.
Cut sheets.
Ready when you are.
The full two-page technical document is available, along with separate one-page Wall Mount and Cassette cut sheets for easier project sharing.
CASSETTE · 1 PAGE

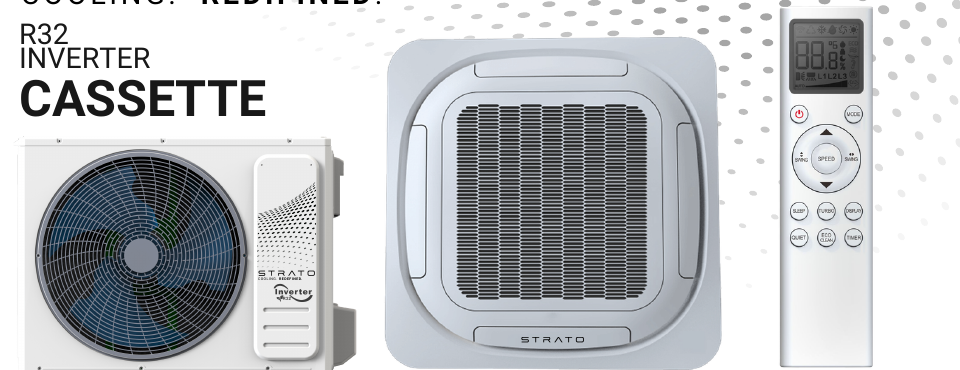

Cassette Technical Cut Sheet
24K through 48K BTU performance, dimensions, 4-way discharge details and Purple Fin technical reference.
FULL RANGE · 2 PAGES
Complete Technical Cut Sheets
Both STRATO Wall Mount and Cassette technical cut sheets in one file.
WALL MOUNT DATA
Compare the range.
Values below reflect the current STRATO technical cut sheet. Fields containing an asterisk or marked TBC should be confirmed before final equipment selection.
Wall Mount
OPEN CUT SHEET →Cassette
OPEN CUT SHEET →PURPLE FIN REFERENCE
The purple detail.

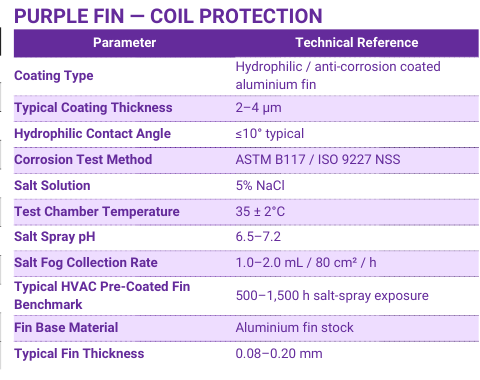

STRATO Purple Fin technical reference lists a hydrophilic / anti-corrosion coated aluminium fin, typical coating thickness of 2-4 μm, and ASTM B117 / ISO 9227 NSS salt-spray test methodology. Refer to the cut sheet for the full parameter list.
